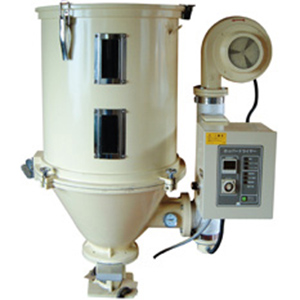

Hot air dryer (MLD series)

[LNG:ENG]

Features

・Rapid drying is available because of high thermal efficiency with effective hot air permeability and heating distribution.
・Easy temperature control with automatic temperature controller
・Improving safety by introducing overheat prevention device to the all model.
・Corrosion free
・Main body is dividable into two parts. Easy to maintain, clean and change raw material.
・Combnation use with magic loader enables automatic supply and dry of raw material.
・Agitated dryer is available.


Specifications

  Capacity
（kg）		 Heater
（kW）		 Blower caapcity
（kW）		 Max. Temperature
（℃）		 Hopper Diamter x overall height
（mm）
MLD-12 12 2.1 0.07 110 φ280 x 780
MLD-25 25 2.7 0.09 φ350 x 1100
MLD-50 50 4.2 0.12 φ480 x 1150
MLD-100 100 6.5 0.35 φ600 x 1000
MLD-150 150 9.0 0.35 φ620 x 1260
MLD-200 200 12.0 0.35 φ750 x 1310
MLD-300 300 15.0 0.75 φ900 x 1360
MLD-400 400 15.0 0.75 φ950 x 1540
MLD-600 600 20.0 1.10 φ1055 x 1875

Standard drying temperature and time

Resin Drying temperature
(℃)		 Drying time
(分)
Acrylic 85〜90 90
ABS 80 90
AS 80 90
PC 120 120〜180
PS 70〜80 60
Nylon 80〜120 120〜180
PE 70〜80 60
PP 80 60
PVC 60〜70 60
