BLEND ACE, AW Series, Weighing Type Blender

Full - automatic, high precision, available from ultracompact to large size.

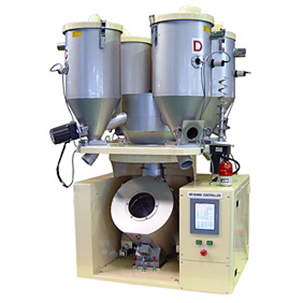

Main Body - appearance

Main Body - appearance

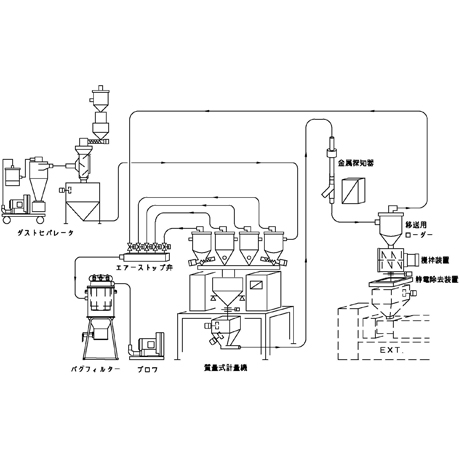

Flow

Flow

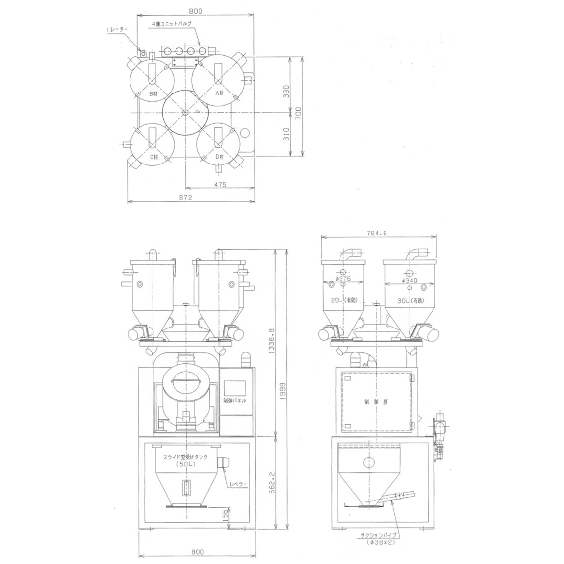

Main Body - External Dimension

Main Body - External Dimension

Features

・Various machine constitutions are available according to required capacity.
・Easy maintenance and quick exchange of raw material.
・Compact body structure because the hopper includes loading function.
・Improving working efficiency with registered data and quid crystal panel display.
・Blend ace enable one blower to supply raw material to multiple hoppers by central control method.


Specifications

Model AW-0500 AW-0800 AW-1800 AW-3800
Capacity Max
（kg/hr）※		 MAX 50 MAX 100 MAX 200 MAX 400
Components 2・3・4
The way of measure Cumulative measure
Batch size 1500g 3000g 6000g 14000g
Accuracy ±0.5% per one batch
The way of setting for ratio Set the digital
Functions 1. Load cell auto reset function
2. Automatic drop correcting function
3. Displaying total amount of use and each amount of use
4. Measuring value trend graph displyaing
5. Data save to external memory
6. Recipi registable
7. Automatic stop device by amount of use
8. Printout output(Option)
alarm 1. Hopper empty (Electrostatic capacitance lower level meter is attached)
2. Zero point error of scalable/Drop value error
3. Loader level meter error
4. Mixing Tank shutter error
5. Mixing tank door opened
6. Overloaded of mixing motor and blower motor
Motor for feeder 25W 25W 40W・25w 40W・25w
Motor for mixer 40W 40W 120W 400W
Capacity of hoppers 6liter 12liter 30liter
20liter		 40liter
30liter
20liter
Capacity of mixer 7liter 12liter 25liter 50liter
Voltage AC3相　200/200・220V　50/60Hz
Outside demension
W × L × H(mm)		 520 × 340 × 850 770 × 780 × 1040 910 × 900 × 1340 980 × 1060 × 1630
Blower motor for loader(kw) 0.76/0.93Kw 0.76/0.93Kw 1.5/1.75Kw 2.2/2.55Kw
Option
Note: The capacity may vary depending on mixing ratio
More than 5kind of materials and 1000kg/hr are available
