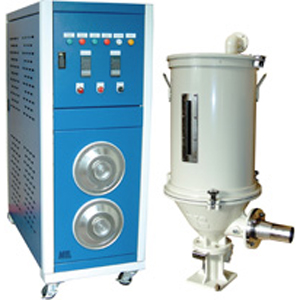

Honeycomb Dehumidification dryer(HD series)
・Hopper capacity:50Kg-1000Kg/Hr

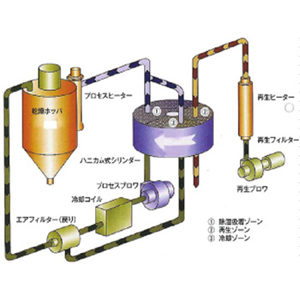

・HD is easy to maintain as compared with conventional type, since there is no diversion valve for regenerative adsorption tower.
・Dry air up to -40 degrees C of dew point can be supplied.
・Maximum drying temperature is 170 degrees C.
・Easy to maintain drying and regenerative filter.
・Stirred dehumidification dryer is available.
Drying Time selection chart by resin
Resin |
Temperature
(C) |
apparent relative density
(Kg/L) |
Drying Time
(Hour) |
Initial Moisture Value
(%) |
Residual Moisture Value
(%) |
Drying Air Volume
(Nm 3/Kg/hr) |
ABS |
80 |
0.6 |
2〜3 |
0.2 |
0.02 |
1.3〜1.7 |
PBT |
120〜140 |
0.7 |
4 |
0.3 |
0.02 |
1.3〜1.7 |
PC |
120 |
0.7 |
2〜3 |
0.3 |
0.01 |
1.3 |
PE |
90 |
0.6 |
1 |
>0.01 |
>0.01 |
1.3〜1.7 |
PE(40%BLACK) |
90 |
0.6 |
3 |
0.8 |
0.02 |
2.2〜2.4 |
PET(ini) |
110〜120 |
0.85 |
3〜4 |
0.04 |
0.02 |
1.2 |
PET |
160〜180 |
0.85 |
6 |
0.08 |
0.005 |
1.7〜2.5 |
PETG |
60〜70 |
0.6 |
4〜6 |
0.5 |
0.02 |
1.7 |
PS |
80 |
0.5 |
1 |
>0.01 |
0.02 |
1.1〜1.3 |
PUR |
90 |
0.7 |
3〜4 |
0.2 |
0.02 |
1.8〜2.0 |
